Is this a stocked product?
No. This page represents a custom-manufacturing direction. Final definition follows approved drawings, specifications, and acceptance requirements.
P008DRIVE HOUSING

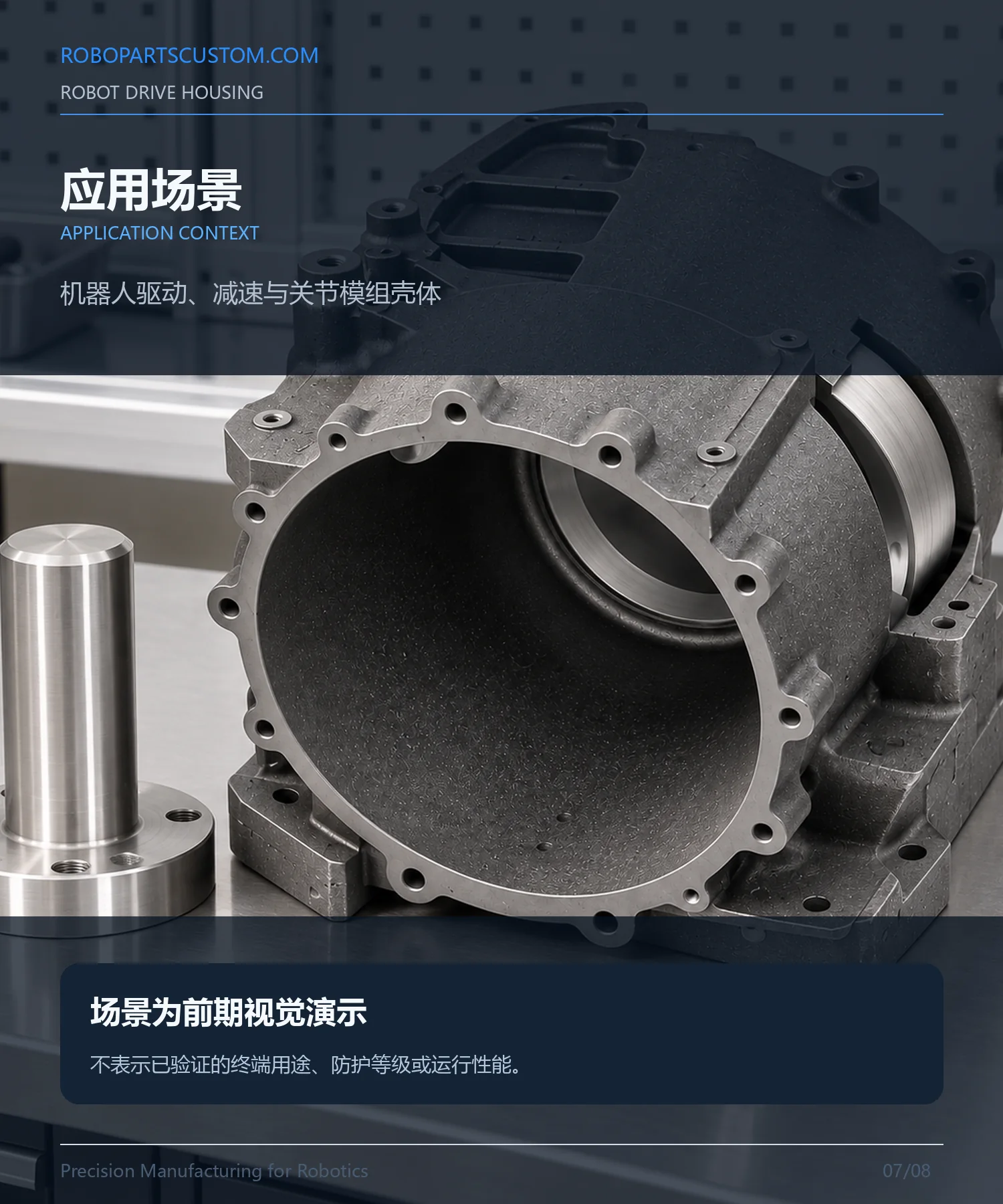

Robot Drive Housing
A structural housing for robot joints, drives, and gearbox modules, reviewed from drawings for circular cavities, flange interfaces, ribs, and machining requirements.
Source-grounded overview
What the available material supports

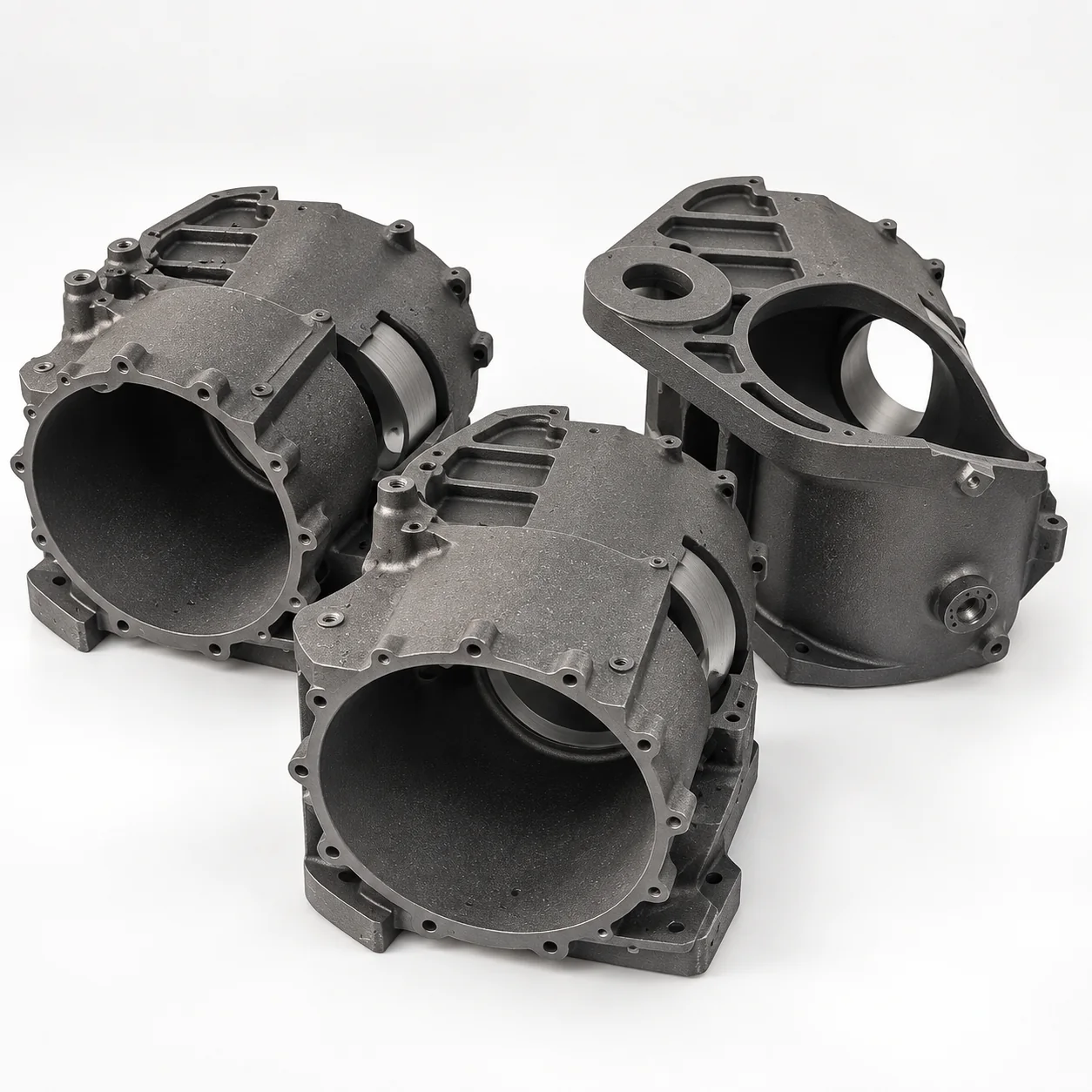

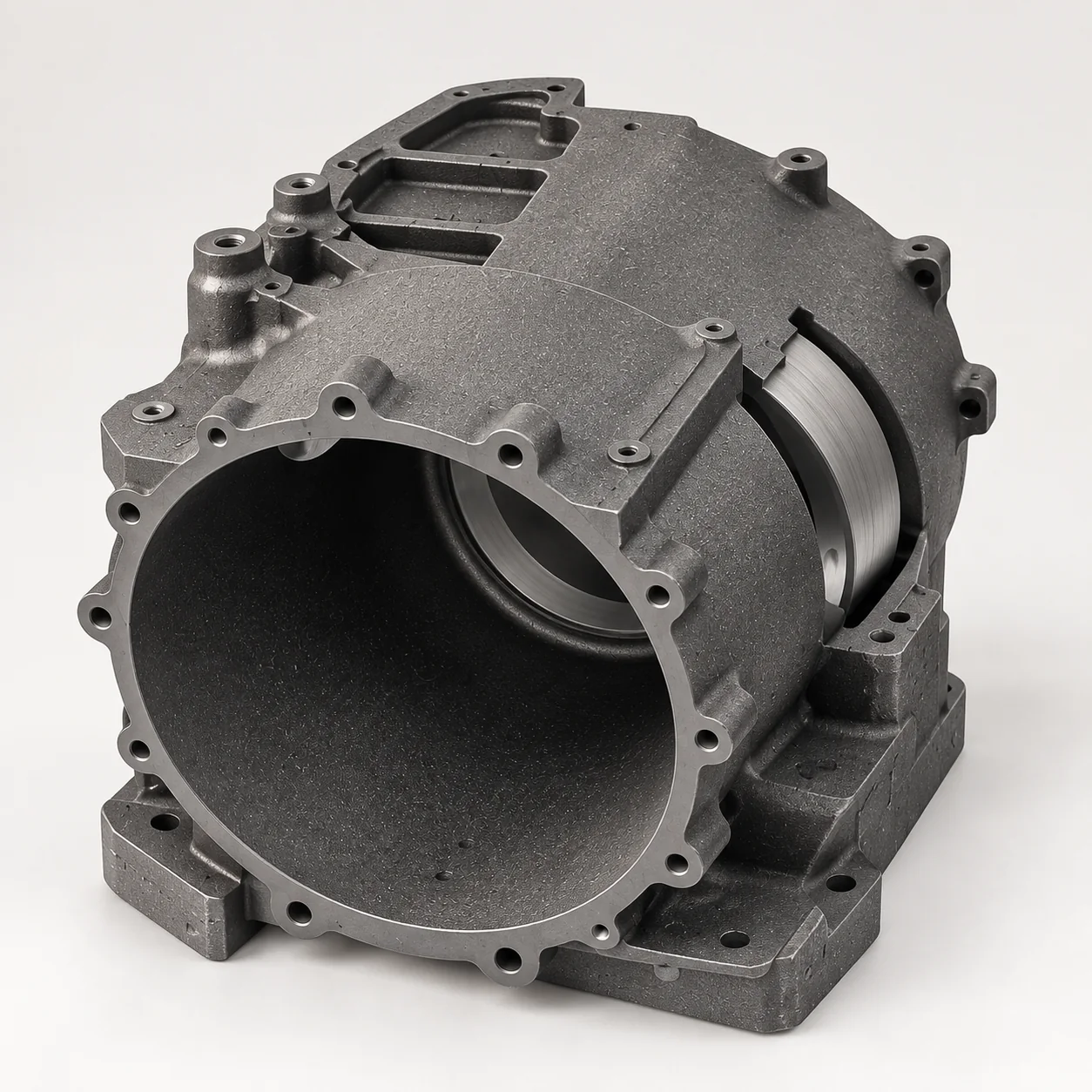

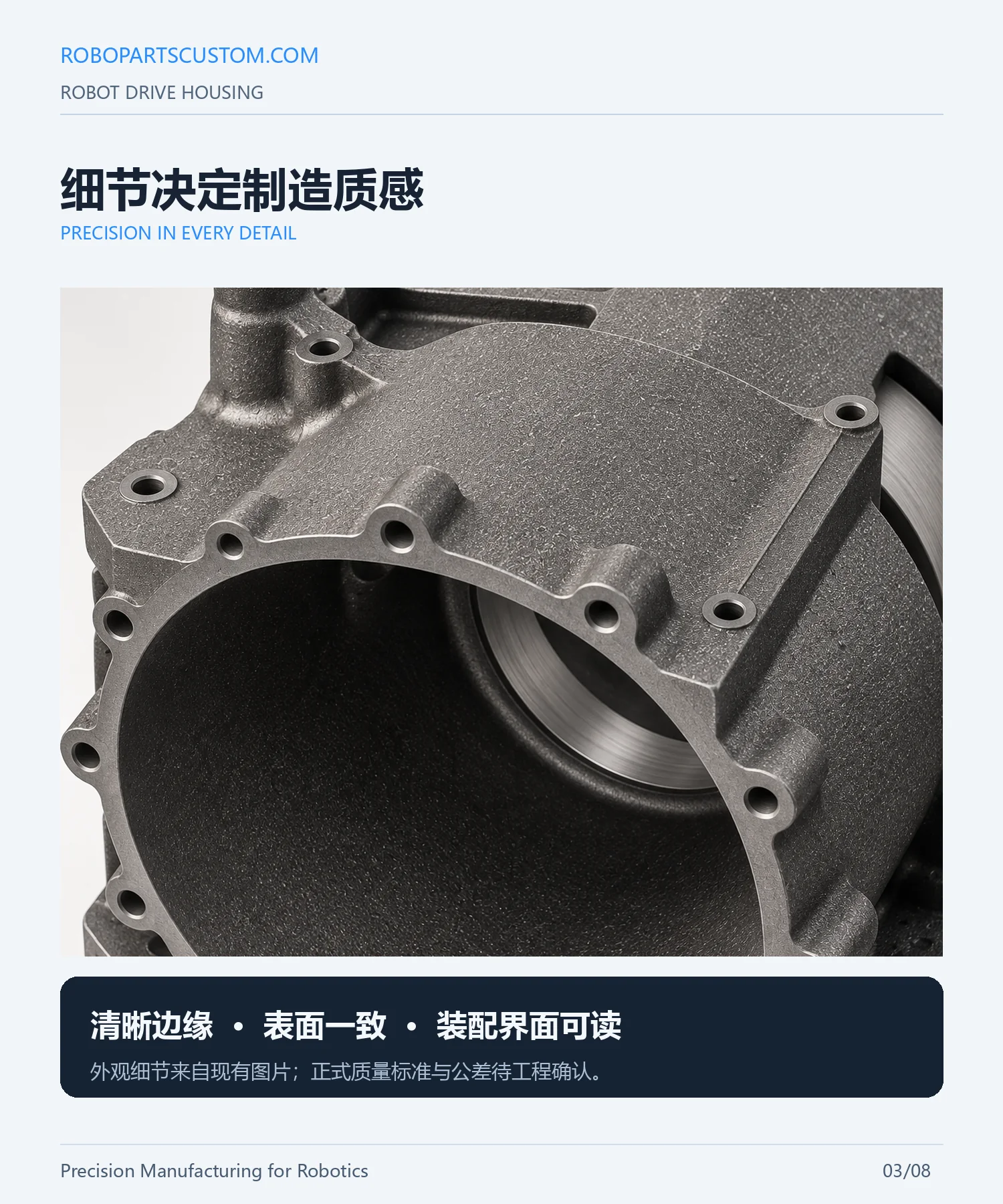

- Source materials show multiple dark-gray housings with circular cavities, flange holes, ribs, and complex outer forms.
- The visible surfaces have a low-gloss appearance and selected machined-looking interfaces.
- Material, forming route, heat treatment, datums, dimensions, tolerances, weight, and load use remain unverified.
RFQ Inputs
Information required before quotation
Only approved project inputs can become commitments for material, process, dimensions, inspection, price, and delivery.
- 01Latest 2D drawing and 3D model
- 02Preferred material and finish requirement
- 03Critical interfaces, datums, and inspection points
- 04Operating environment and assembly boundary
- 05Prototype quantity, annual estimate, and schedule
- 06Approved technical and quality documents
Manufacturing routes available for review
These are company capabilities and possible routes for this part class; they do not prove that the displayed item uses a particular material or process.
Functional prototypes5-axis CNC / boring and milling reviewCavity and flange machiningFinish reviewDimensional and visual inspection

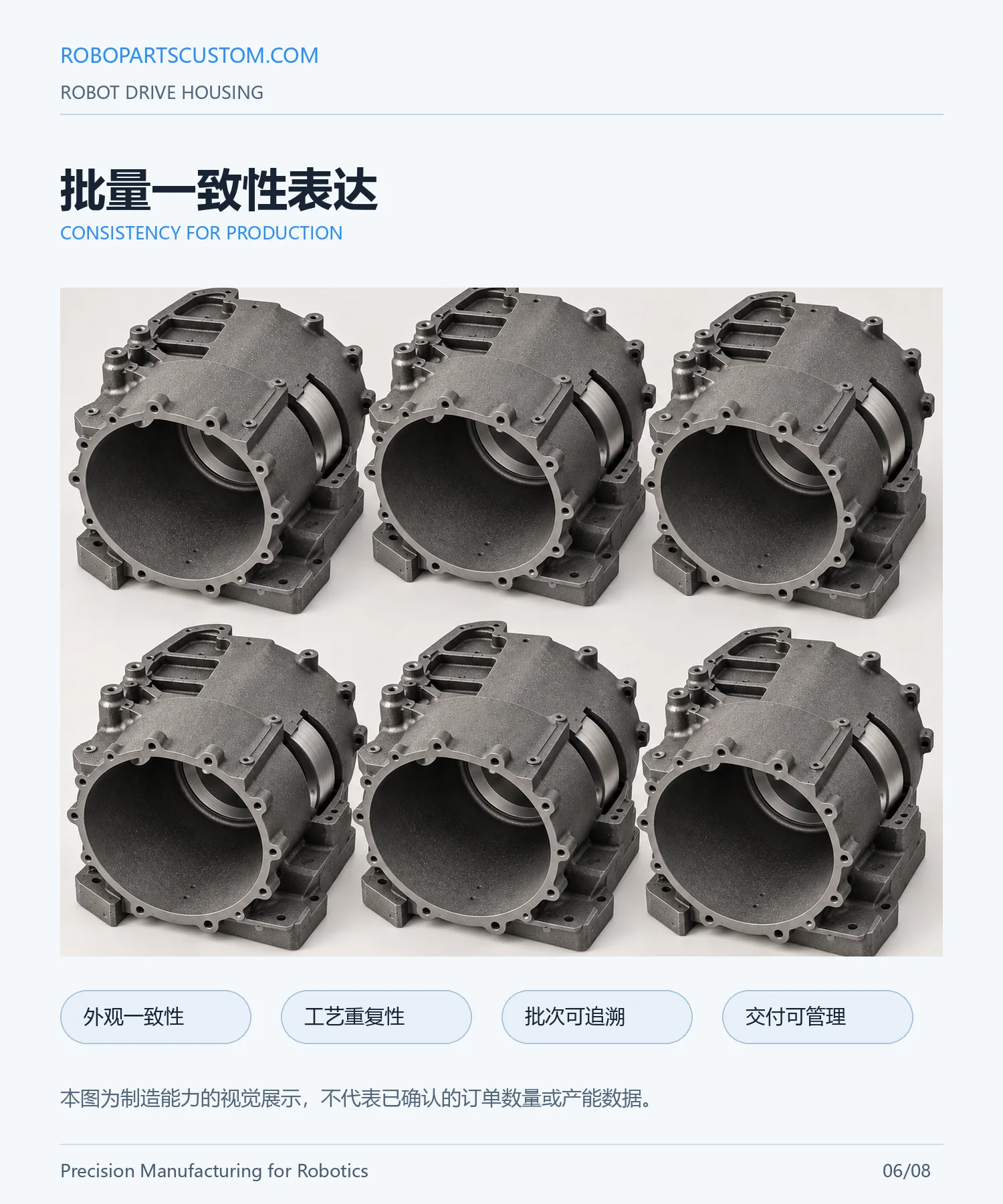

Representative Gallery

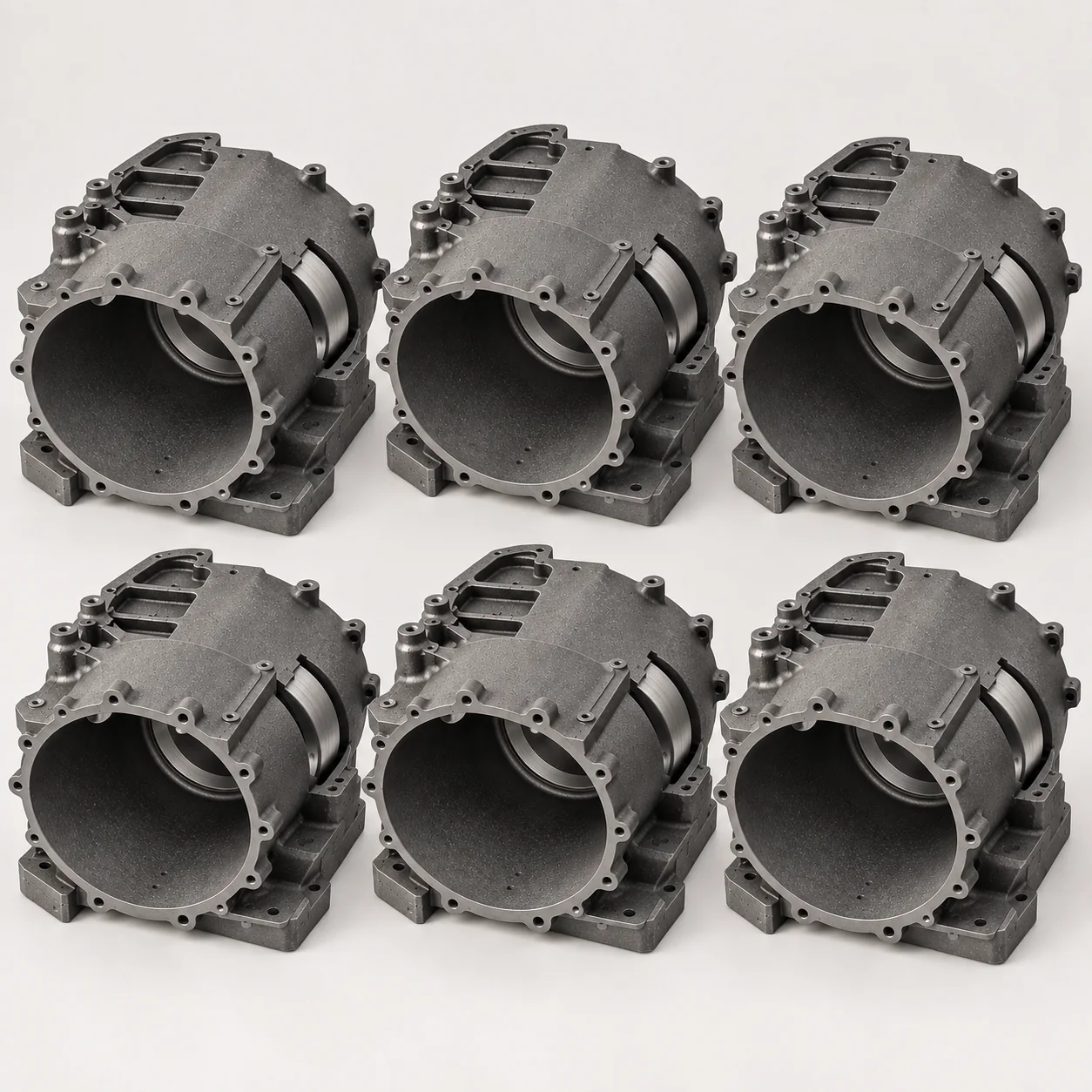

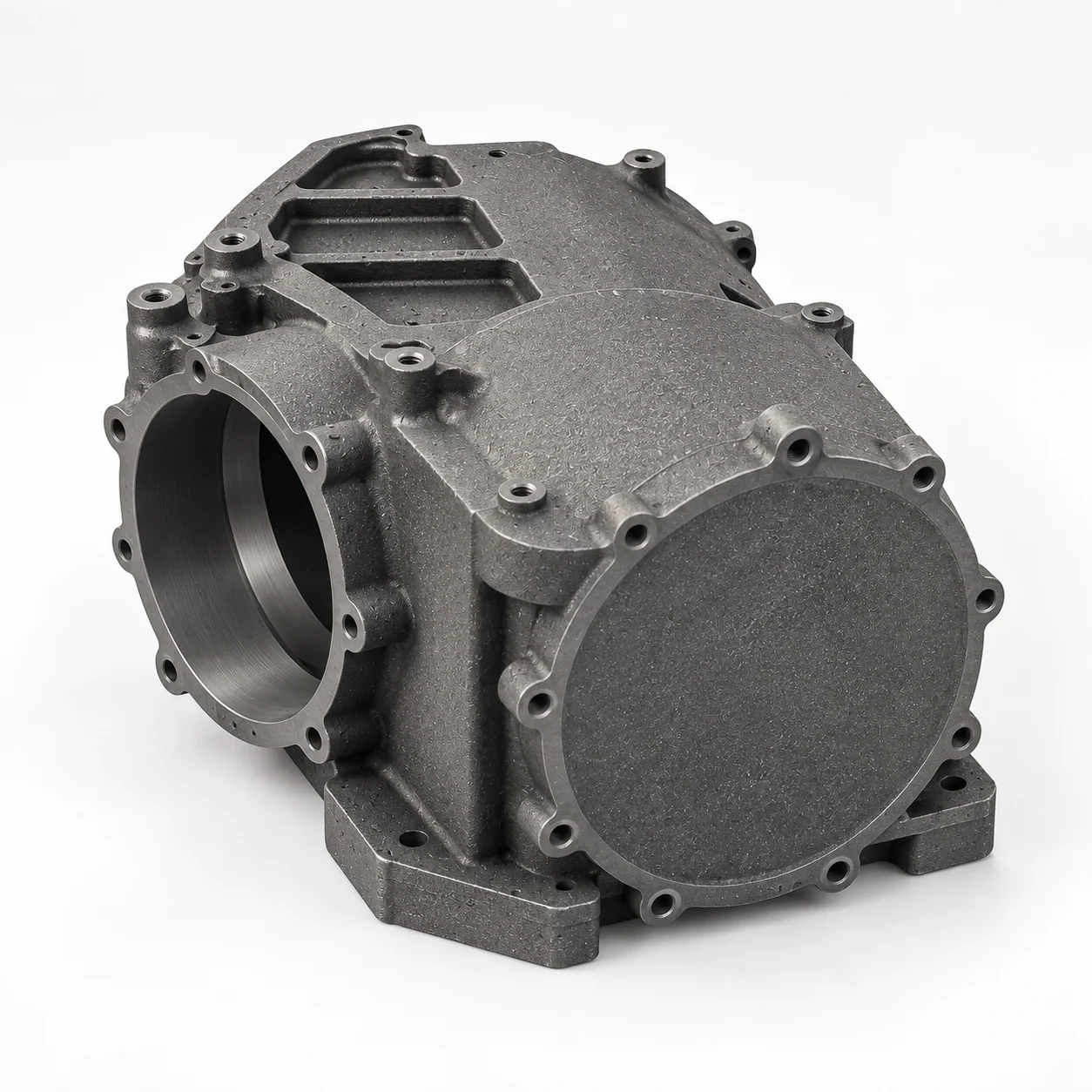

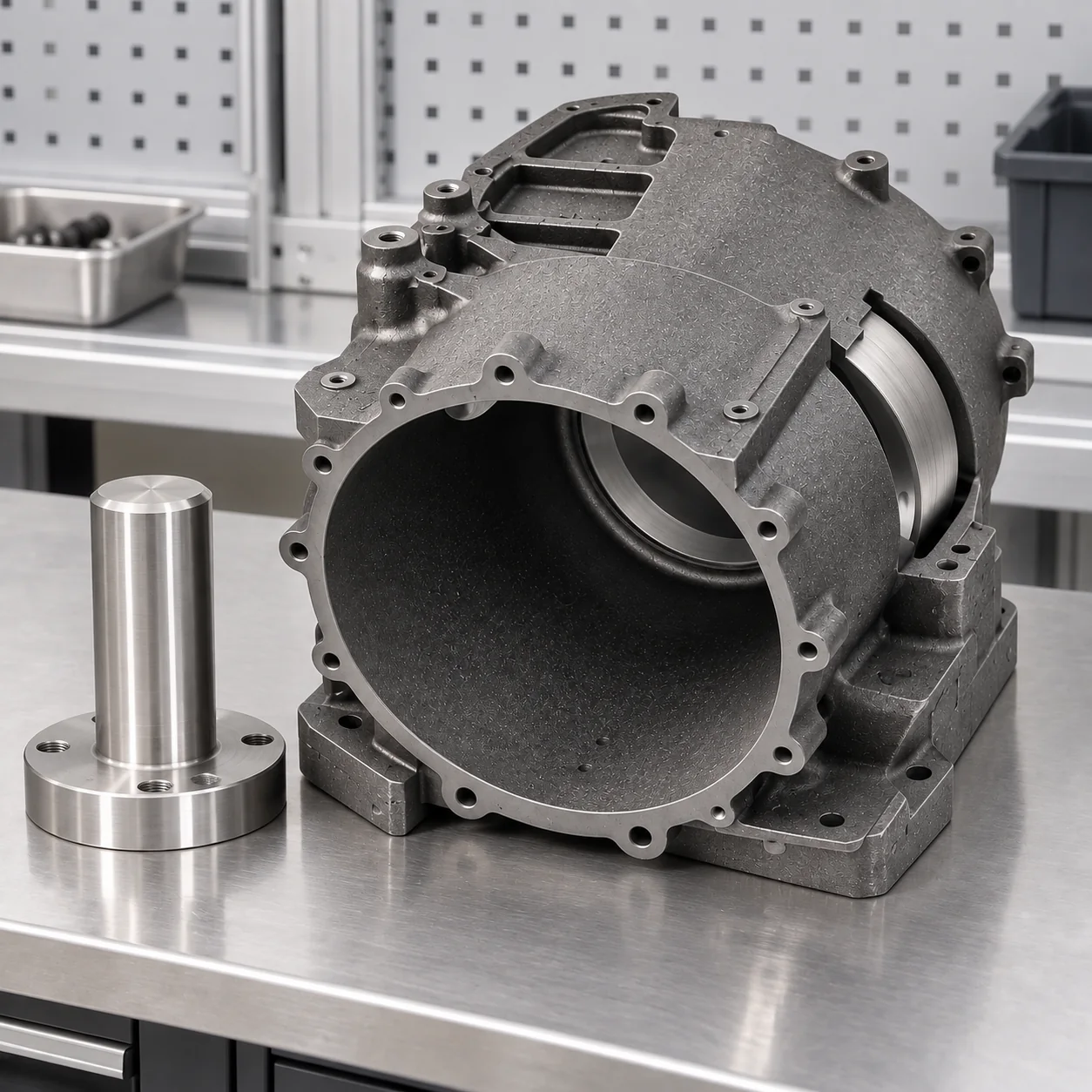

Six representative views.
Images illustrate appearance and project direction. Some are presentation visuals derived from source materials and are not evidence of material, dimensions, performance, equipment, or factory conditions.
Detailed Product Story

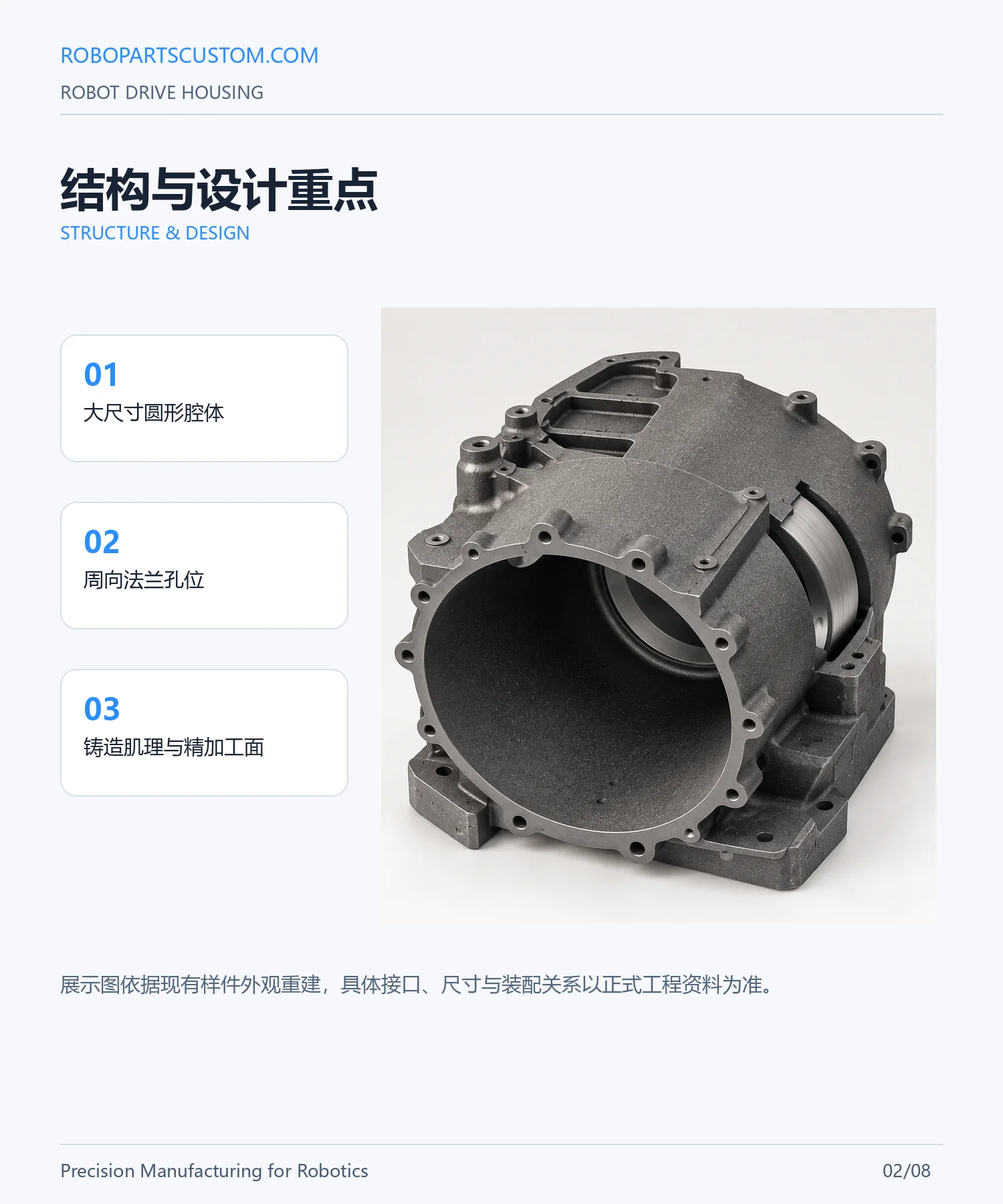

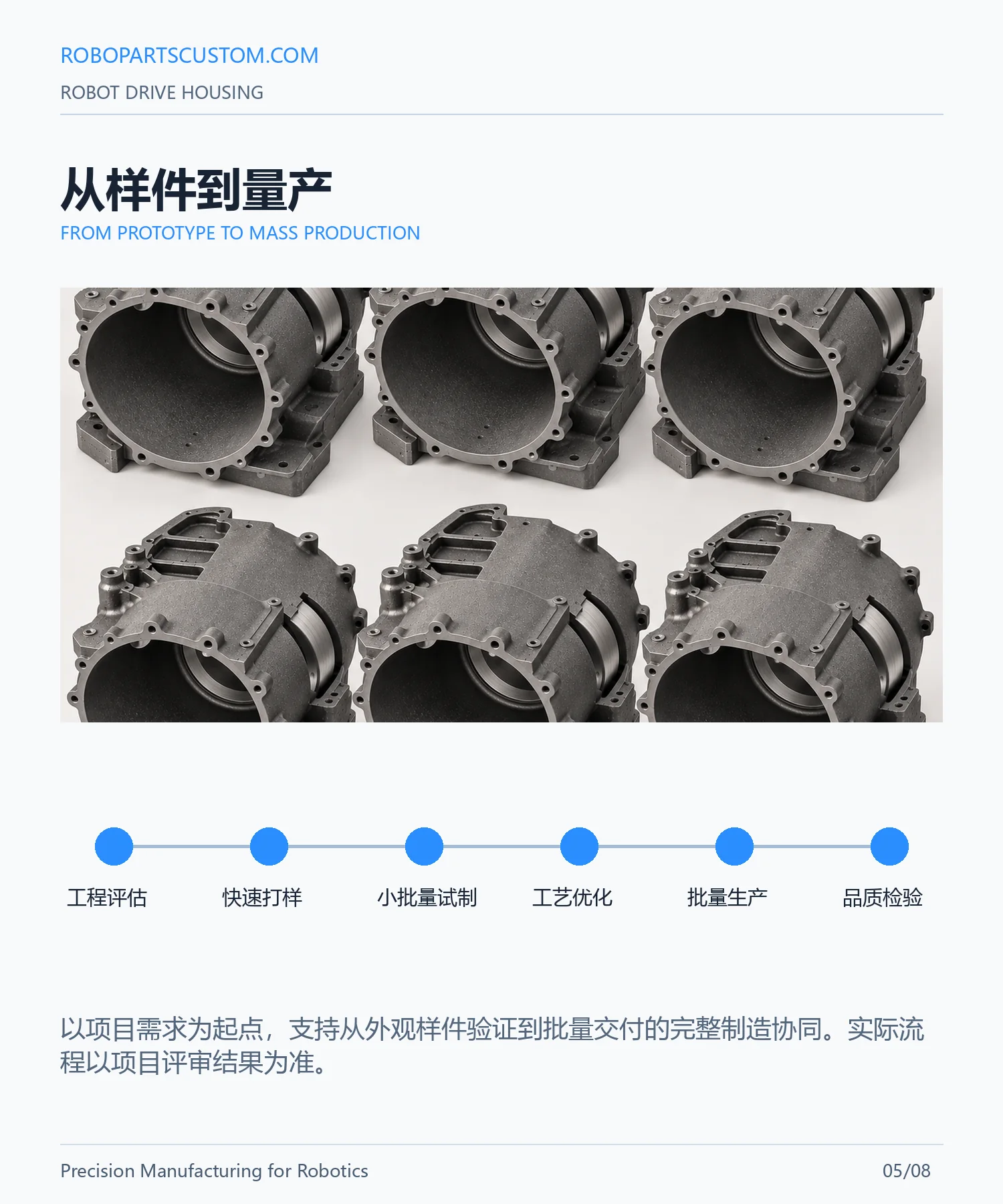

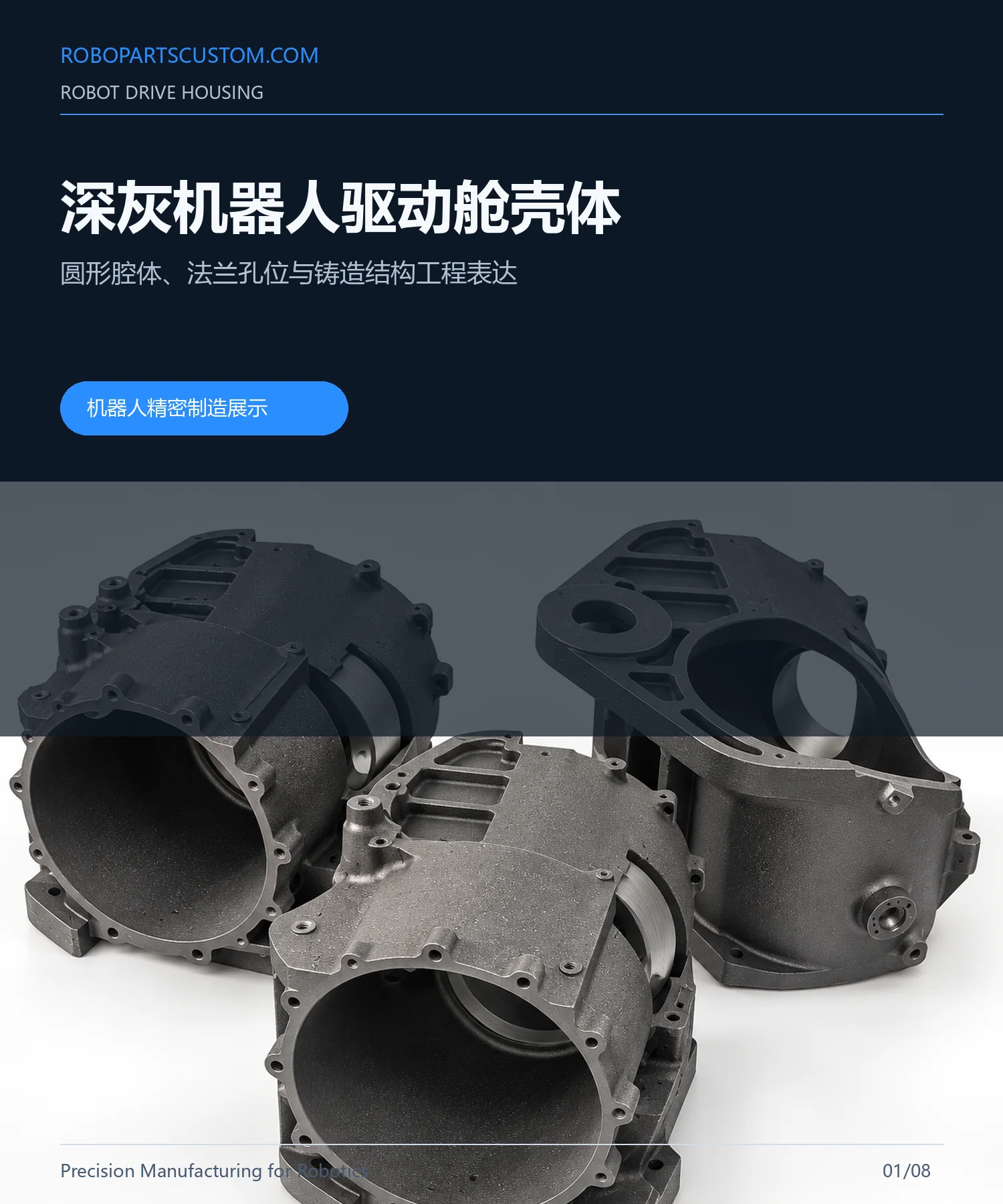

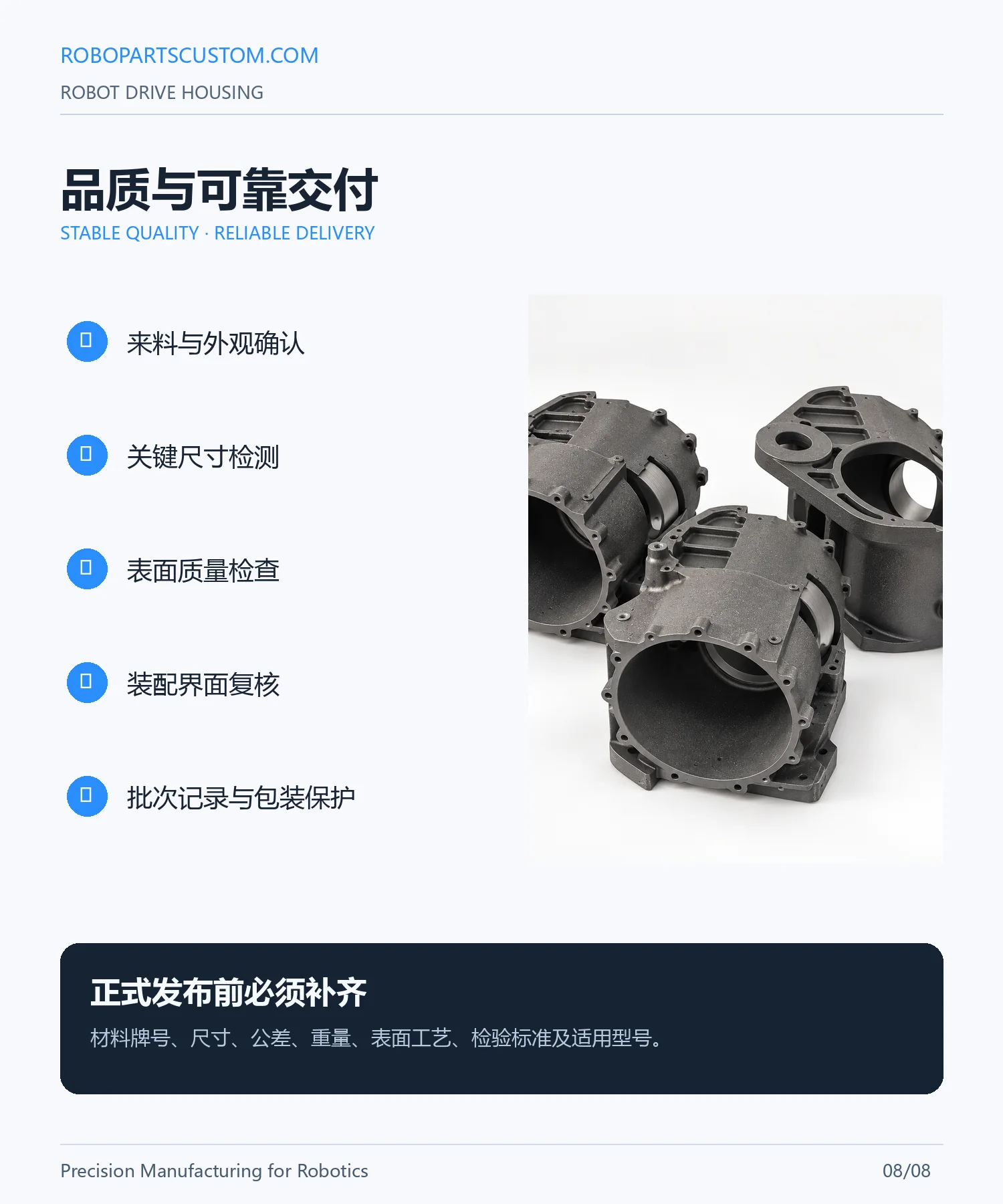

Eight panels covering the product and process.
Localized graphics explain the product concept, structural details, materials, manufacturing path, applications, and quality controls.

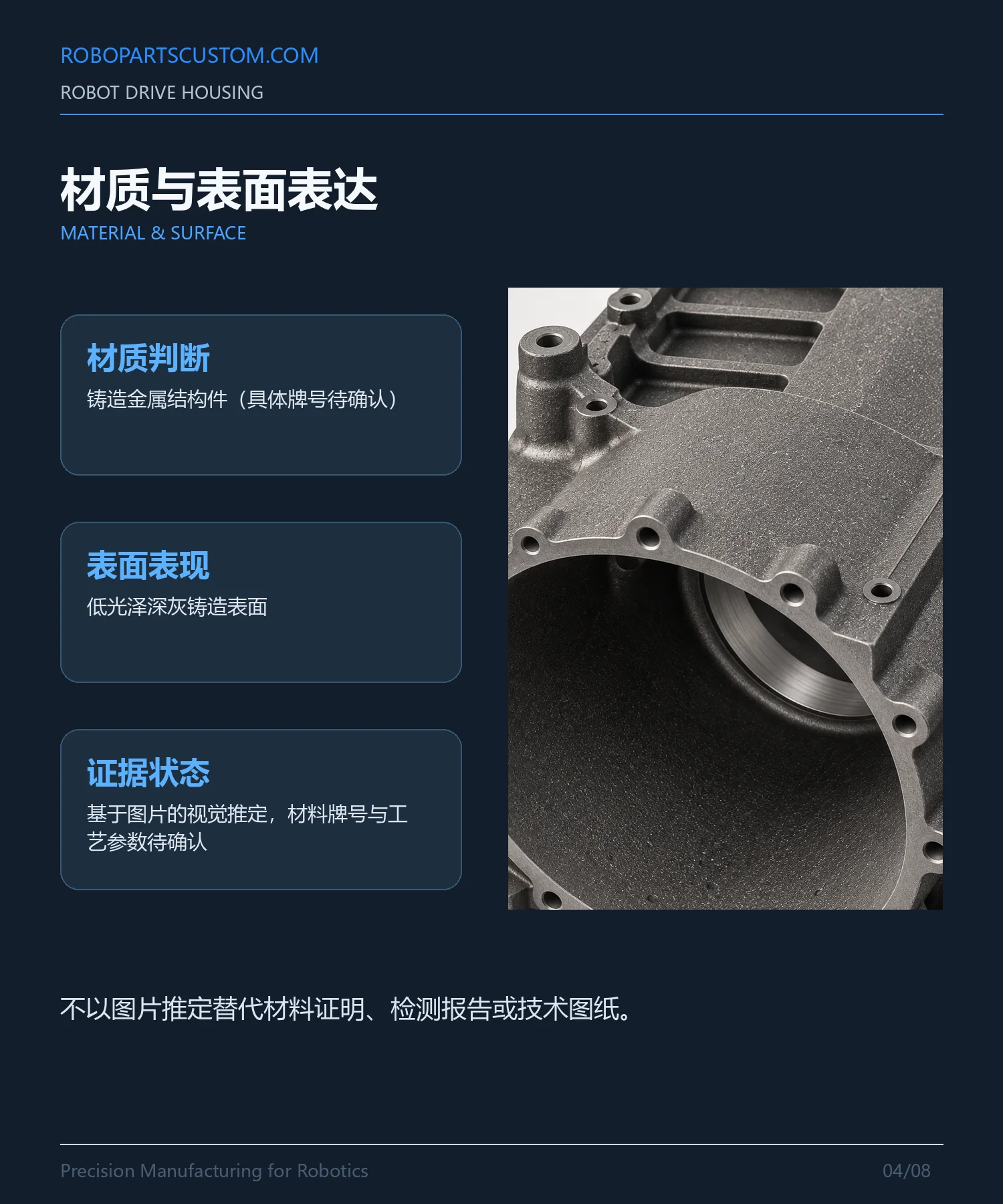

Can an image prove material or performance?
No. Material, finish, protection, load, and tolerance require project documents, physical inspection, or engineering approval.
What should an RFQ include?
Send the drawing revision, 3D model, material direction, quantity, schedule, critical interfaces, inspection points, and operating environment.
