Is this a stocked product?
No. This page represents a custom-manufacturing direction. Final definition follows approved drawings, specifications, and acceptance requirements.
P005ARM HOUSING
Curved-Arm Structural Housing
A complex curved structural housing for robot arms and joint sections, reviewed from drawings for flange interfaces, machining datums, and finish requirements.
Source-grounded overview
What the available material supports

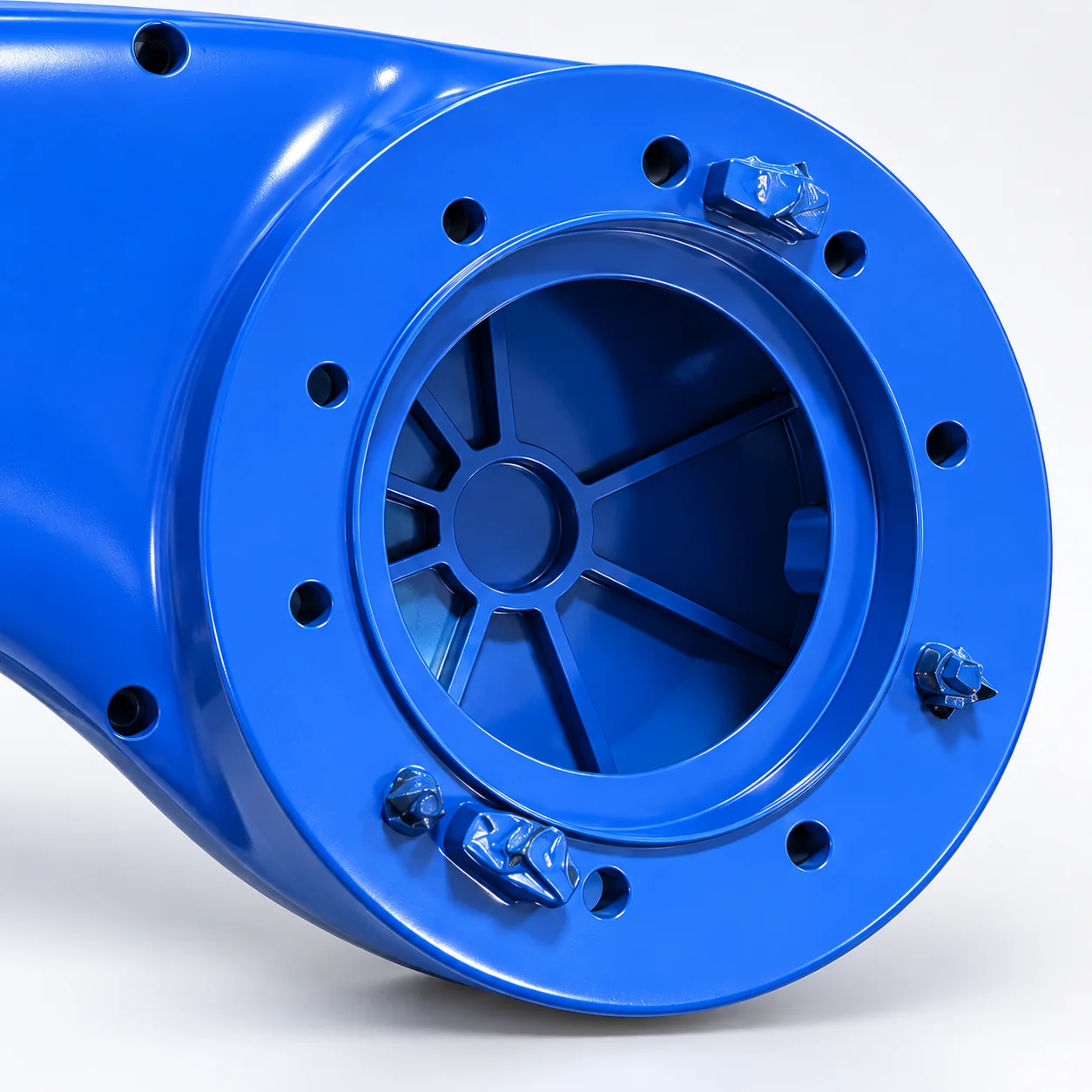

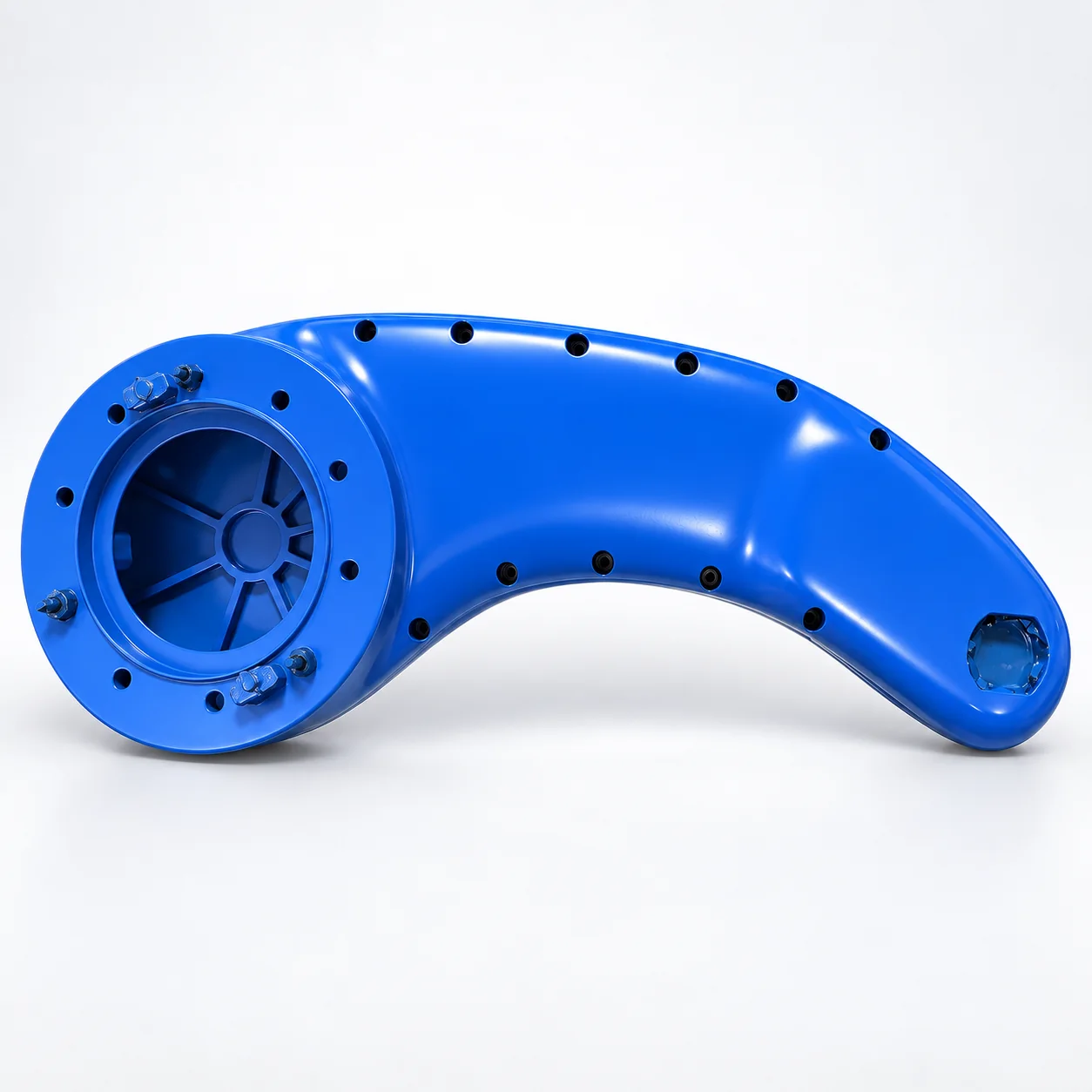

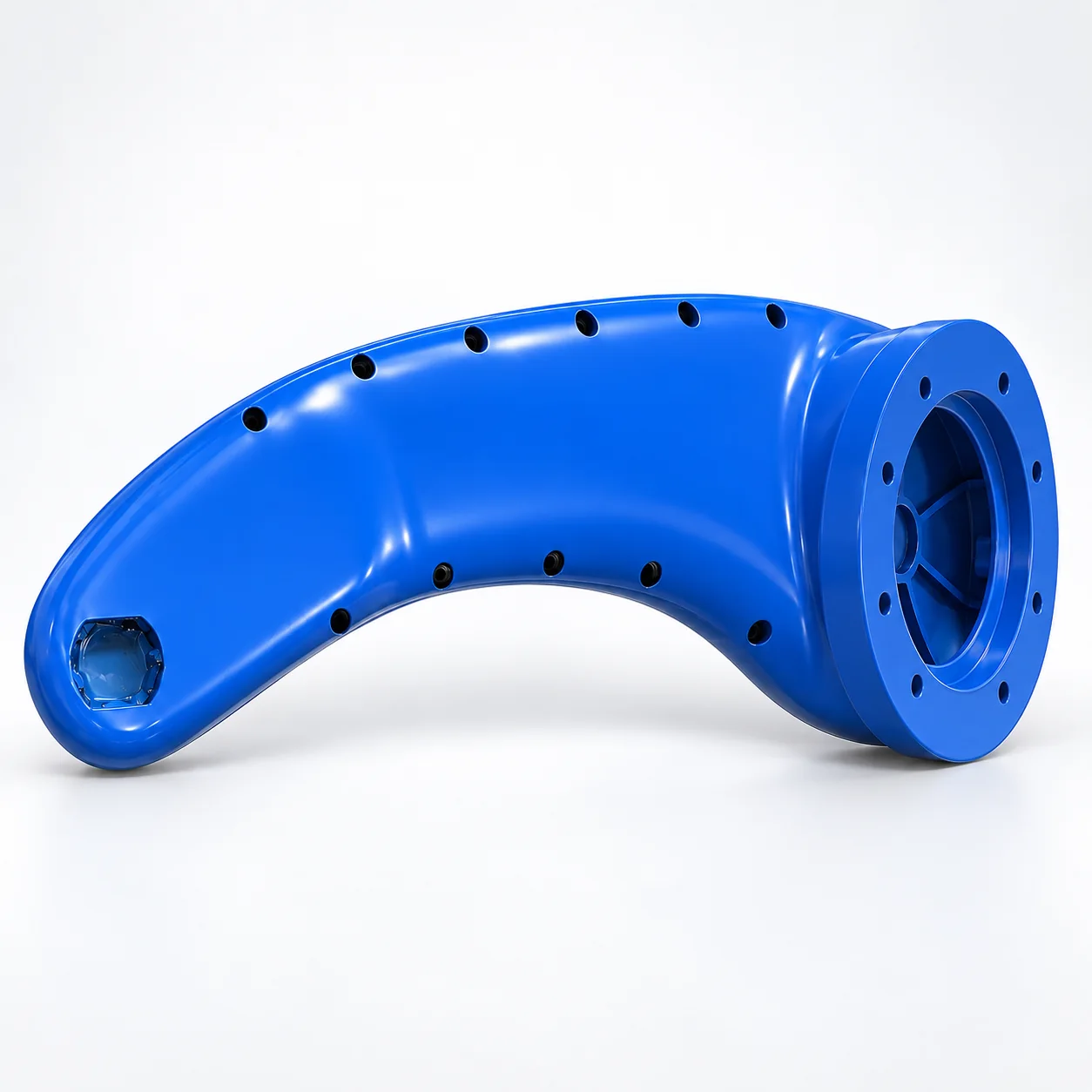

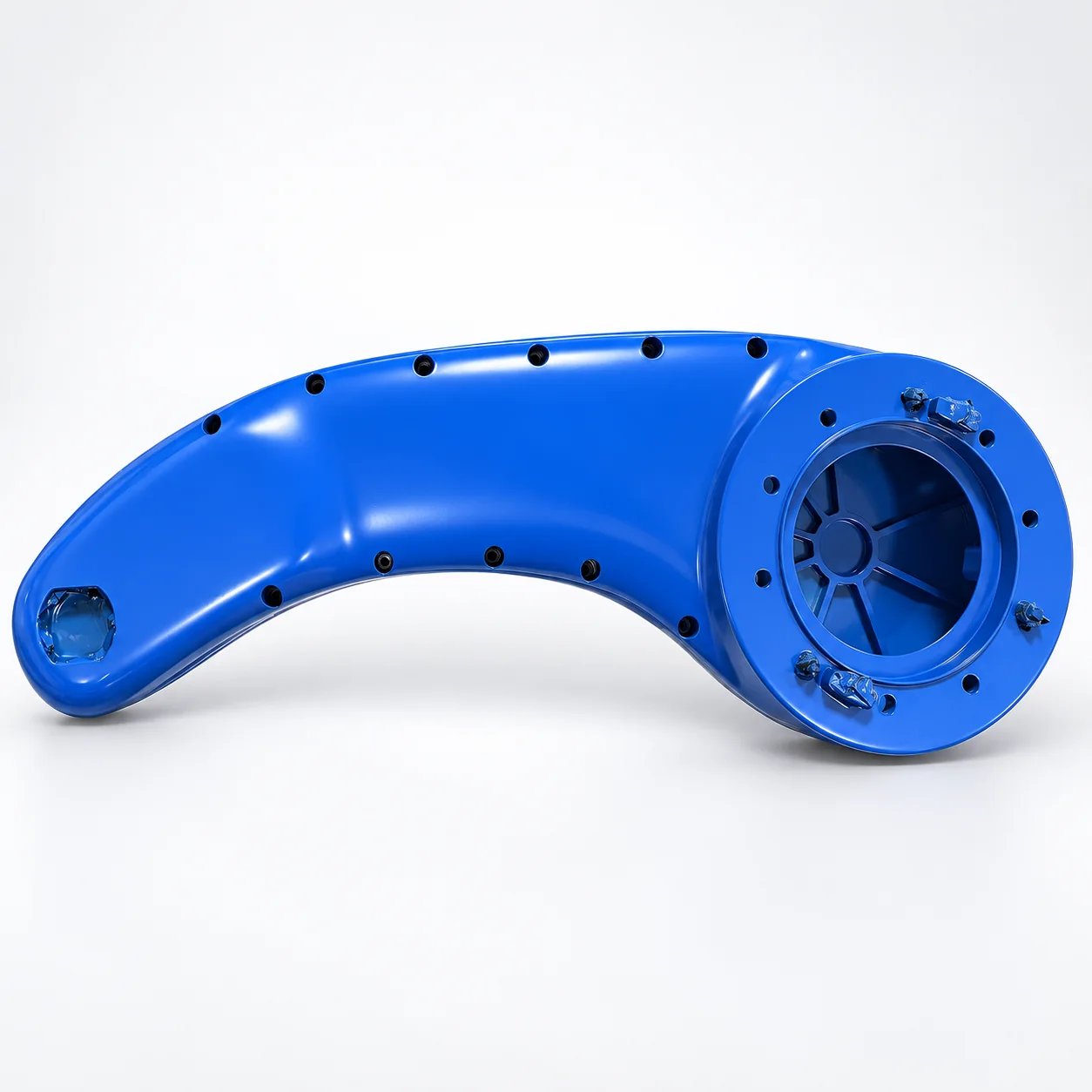

- Source materials show one blue curved structural housing with end flanges and mounting holes.
- The visible form supports a robot-arm or joint-section housing concept.
- Material, forming route, coating system, dimensions, tolerances, weight, and load use remain unverified.
RFQ Inputs
Information required before quotation
Only approved project inputs can become commitments for material, process, dimensions, inspection, price, and delivery.
- 01Latest 2D drawing and 3D model
- 02Preferred material and finish requirement
- 03Critical interfaces, datums, and inspection points
- 04Operating environment and assembly boundary
- 05Prototype quantity, annual estimate, and schedule
- 06Approved technical and quality documents
Manufacturing routes available for review
These are company capabilities and possible routes for this part class; they do not prove that the displayed item uses a particular material or process.
Functional prototypes5-axis CNC and boring reviewInterface and datum machiningPowder-coat / paint reviewDimensional and visual inspection
Representative Gallery
Six representative views.
Images illustrate appearance and project direction. Some are presentation visuals derived from source materials and are not evidence of material, dimensions, performance, equipment, or factory conditions.
Detailed Product Story
Eight panels covering the product and process.
Localized graphics explain the product concept, structural details, materials, manufacturing path, applications, and quality controls.
Can an image prove material or performance?
No. Material, finish, protection, load, and tolerance require project documents, physical inspection, or engineering approval.
What should an RFQ include?
Send the drawing revision, 3D model, material direction, quantity, schedule, critical interfaces, inspection points, and operating environment.
Custom Engineering
