Is this a stocked product?
No. This page represents a custom-manufacturing direction. Final definition follows approved drawings, specifications, and acceptance requirements.
P001ROBOT STRUCTURE

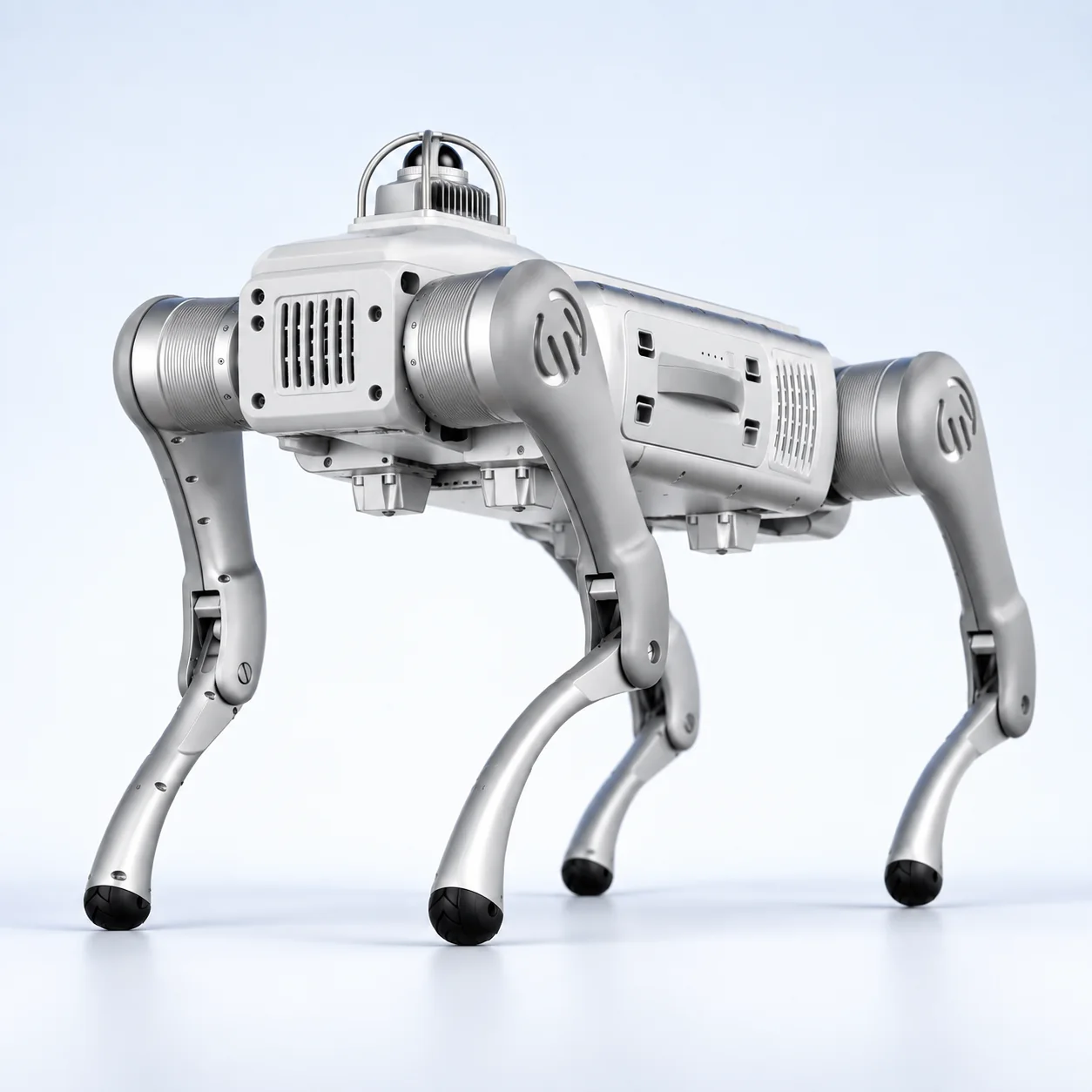

Quadruped Robot Structural System
A custom manufacturing solution for body frames, leg links, joint connectors, and protective housings, reviewed from drawings for functional prototypes and low-volume projects.
Source-grounded overview
What the available material supports

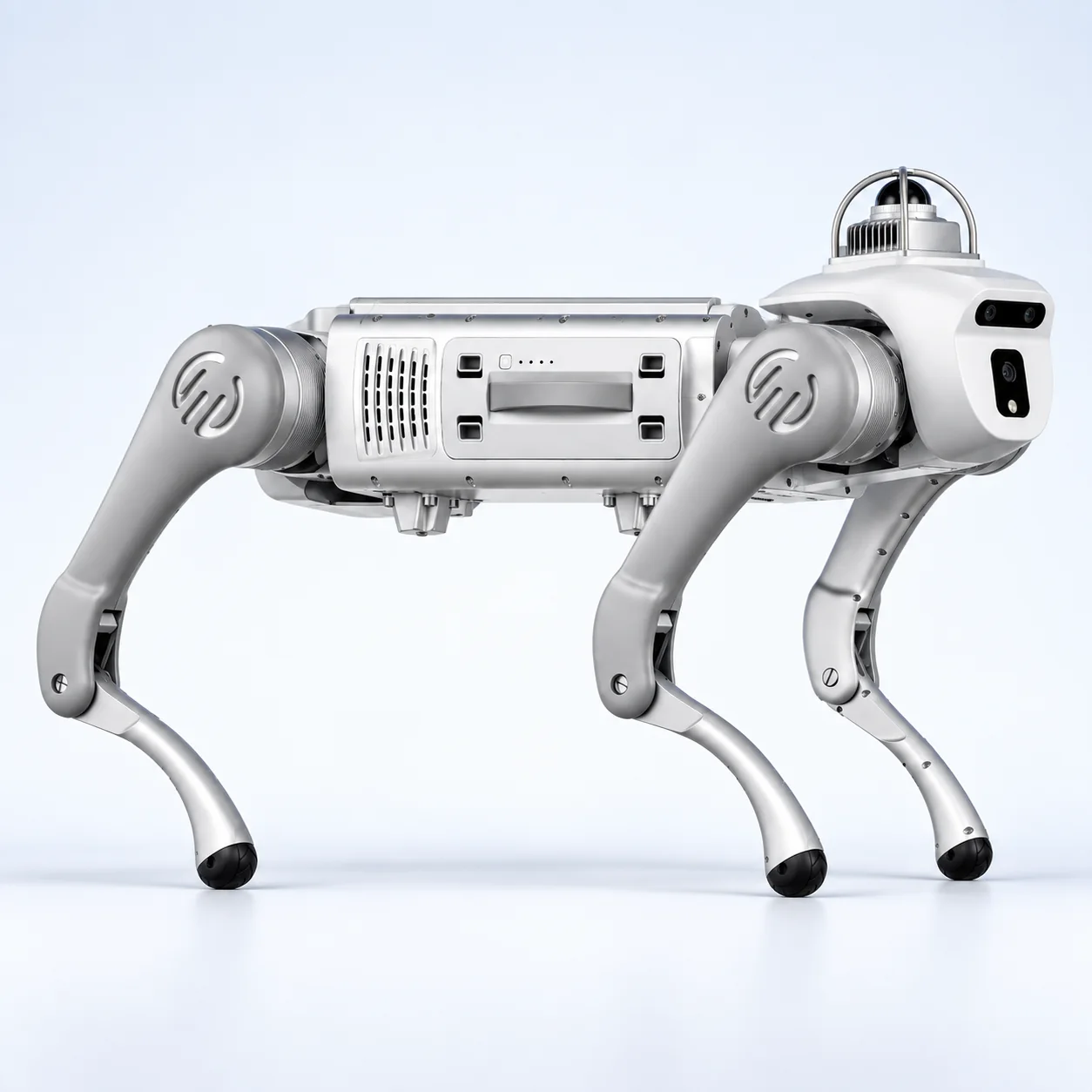

- Source materials show a complete quadruped platform and multiple silver-gray structural parts.

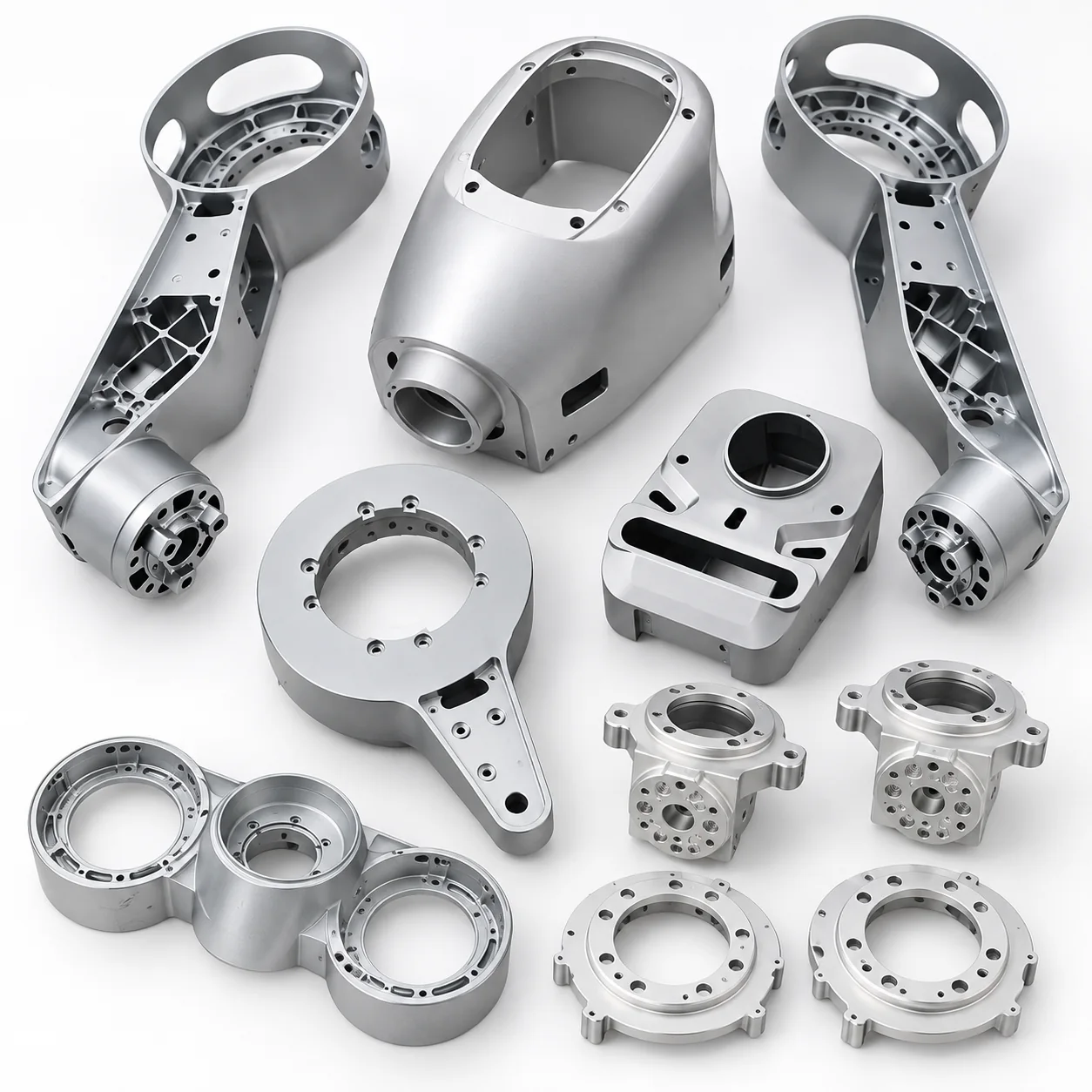

- Visible parts include body frames, leg links, joint connectors, rings, covers, and repeated components.
- Exact alloys, dimensions, tolerances, loads, and interfaces remain subject to engineering evidence.
RFQ Inputs
Information required before quotation
Only approved project inputs can become commitments for material, process, dimensions, inspection, price, and delivery.
- 01Latest 2D drawing and 3D model
- 02Preferred material and finish requirement
- 03Critical interfaces, datums, and inspection points
- 04Operating environment and assembly boundary
- 05Prototype quantity, annual estimate, and schedule
- 06Approved technical and quality documents
Manufacturing routes available for review
These are company capabilities and possible routes for this part class; they do not prove that the displayed item uses a particular material or process.
SLA / SLS / MJF additive prototyping3-axis / 5-axis CNC machiningGravity / low-pressure castingSandblasting, micro-arc oxidation, powder coatingAssembly and tolerance-stack validation

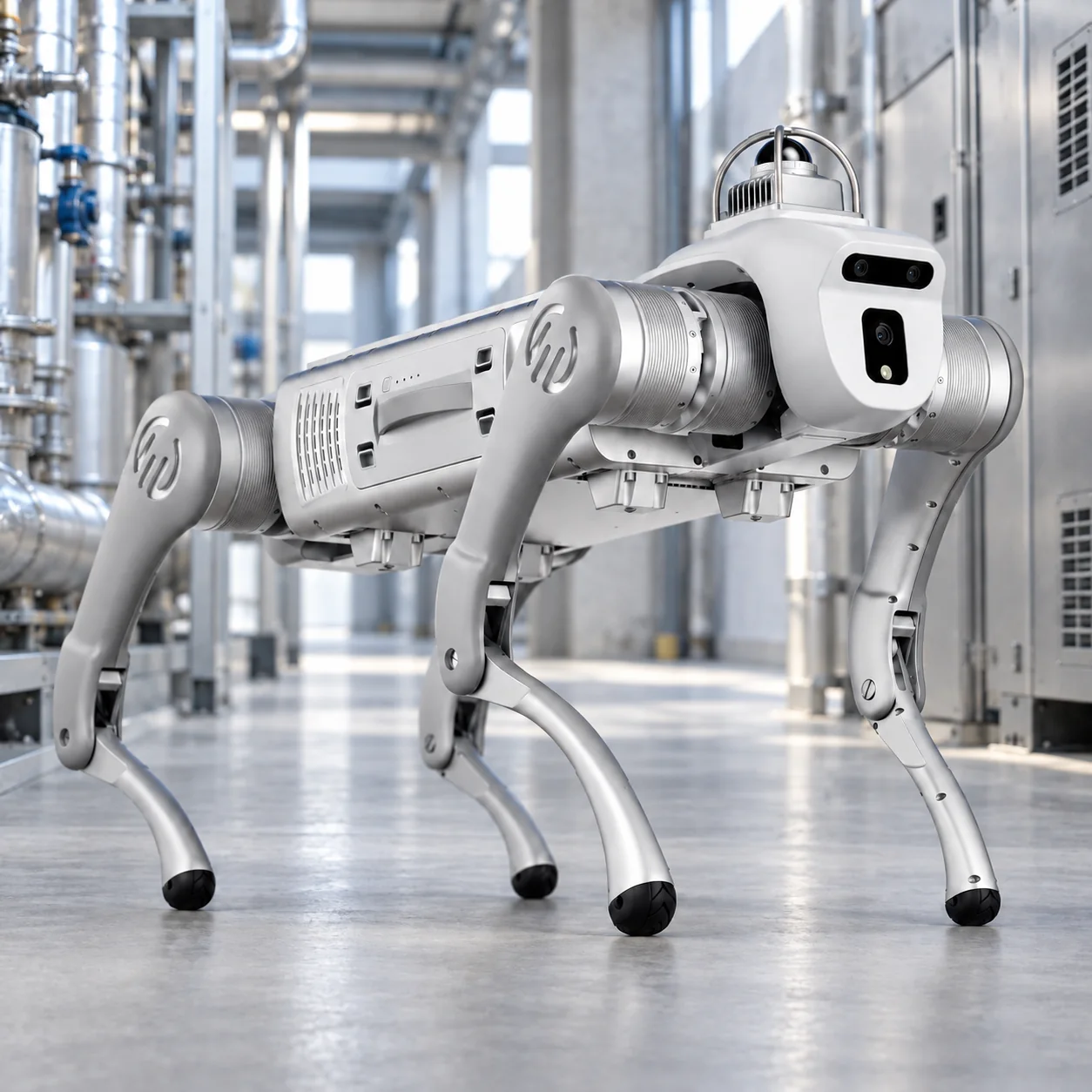

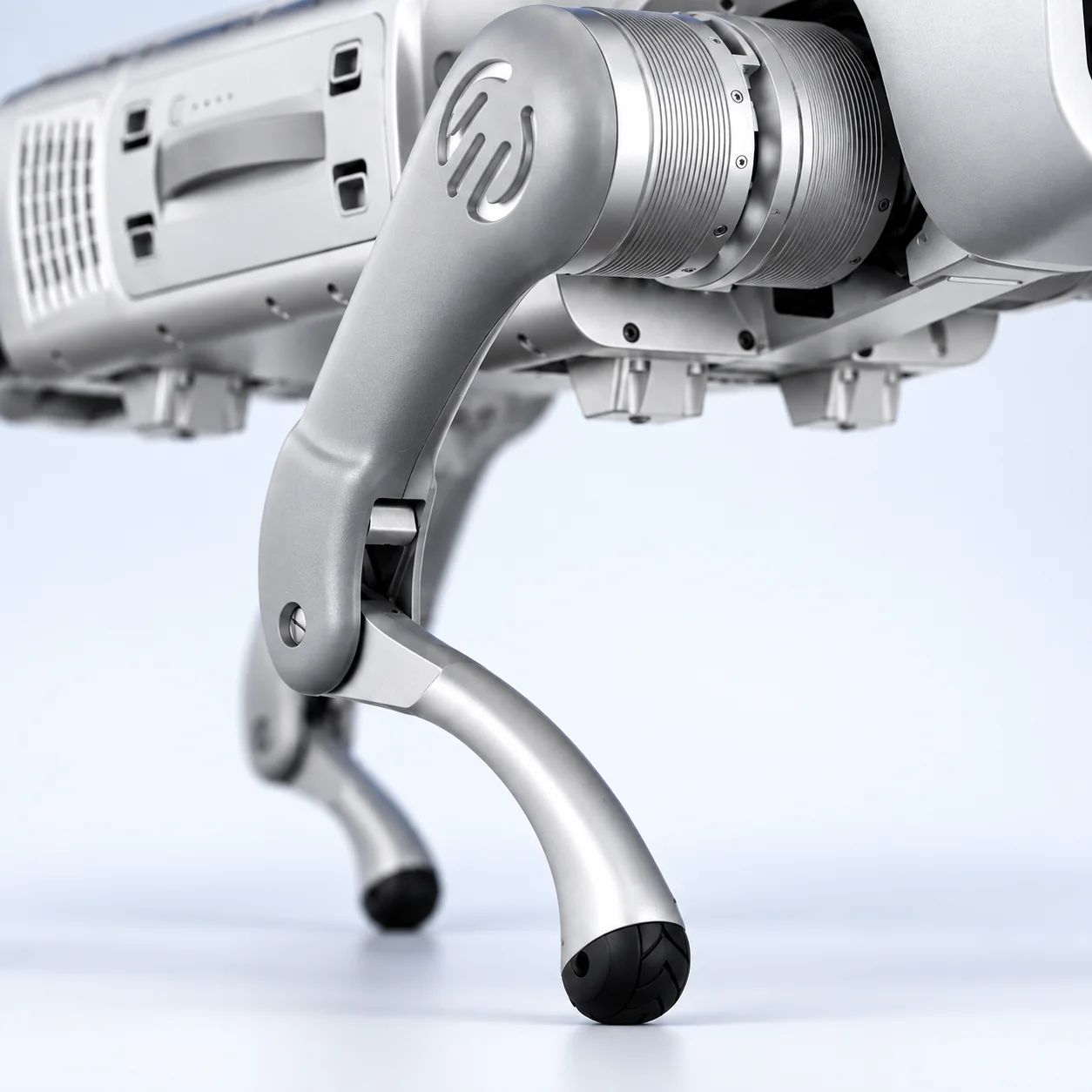

Representative Gallery
Six representative views.
Images illustrate appearance and project direction. Some are presentation visuals derived from source materials and are not evidence of material, dimensions, performance, equipment, or factory conditions.
Detailed Product Story
Eight panels covering the product and process.
Localized graphics explain the product concept, structural details, materials, manufacturing path, applications, and quality controls.
Can an image prove material or performance?
No. Material, finish, protection, load, and tolerance require project documents, physical inspection, or engineering approval.
What should an RFQ include?
Send the drawing revision, 3D model, material direction, quantity, schedule, critical interfaces, inspection points, and operating environment.
